    <TD><H3>Sonar 75A</H3>
      <A HREF="Photos/Sonar_75A.jpg">
      <IMG SRC="Photos/Sonar_75A.jpg" TITLE="Sonar 75A" WIDTH="1000" BORDER="1" /></A>
      <TABLE BORDER="1" STYLE="font-size: medium;">
        <TR bgcolor="#CCFFFF">
          <TD><STRONG>Type:</STRONG></TD>
          <TD>Professional Marine Transceiver</TD>
        </TR>
        <TR>
          <TD><STRONG>Frequency Range:</STRONG></TD>
          <TD>2-6 MHz</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Modes:</STRONG></TD>
          <TD>AM/???</TD>
        </TR>
        <TR>
          <TD><STRONG>RF Power Output:</STRONG></TD>
          <TD>?? W</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Channels:</STRONG></TD>
          <TD>6</TD>
        </TR>
        <TR>
          <TD><STRONG>Voltage:</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Current Drain:</STRONG></TD>
          <TD>RX: ?? mA<BR />
            TX: Max ?? A</TD>
        </TR>
        <TR>
          <TD><STRONG>Aerial Input:</STRONG></TD>
          <TD>?? ohms</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Dimensions (W*H*D):</STRONG></TD>
          <TD>10⅝ x 6¼ x 3½ inches</TD>
        </TR>
        <TR>
          <TD><STRONG>Weight:</STRONG></TD>
          <TD>15 lbs</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Manufactured:</STRONG></TD>
          <TD>195x-195x</TD>
        </TR>
        <TR>
          <TD><STRONG>Other:</STRONG></TD>
          <TD><BR /></TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Related Documents:</STRONG></TD>
          <TD><STRONG>-  WANTED ! </STRONG>-<A HREF="../../../- Images/Wanted.jpg"> User Manual</A> (??? KB)</TD>
        </TR>
      </TABLE><BR />

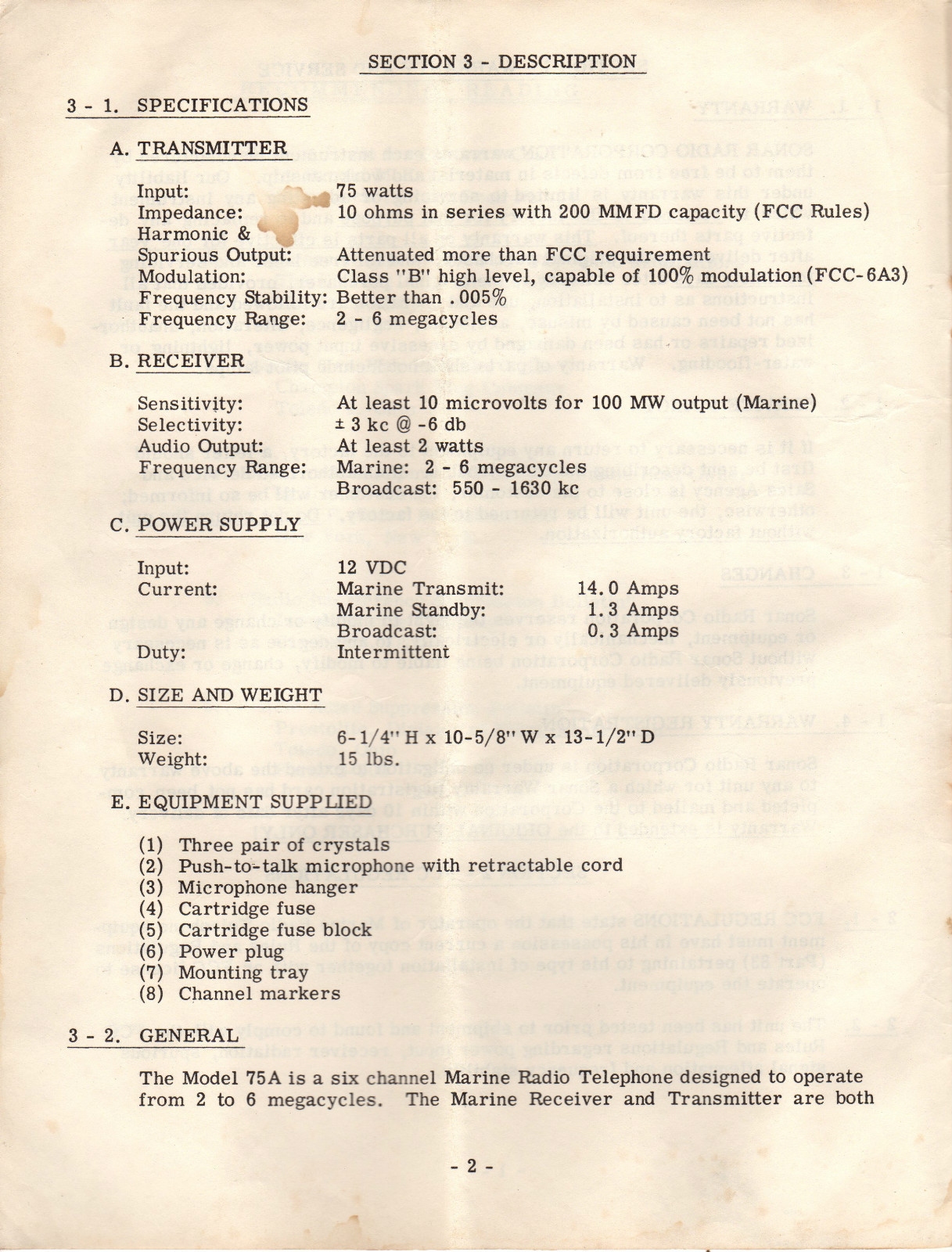

      <A HREF="Photos/Sonar_75A_specs.jpg">
      <IMG SRC="Photos/Sonar_75A_specs.jpg" TITLE="Sonar 75A"  WIDTH="1000" BORDER="1" /></A></TD>
